Module: Professional Arranger and Midi Sound module.
8 dynamic curves, Aftertouch, Portamento,
Operating system updatable via USB port,
17 Volume slider controls (1 assignable),
10 display User Tab.
Display: 320 x 240 pixel TFT colour graphic display.
Hard Disk: 80 GB ATA 2,5”.
Usb: 2 USB host + 1 USB device.
Mass Storage
Devices: USB sticks, USB floppy disks, MP3 players,
CD-ROM and DVD ROM, HD.
Sound Generation: 430 New Presets with Stereo and multi-layer
Voices, 512 GM2 sounds, 32 parts Multitimbral,
Voice Character Emulation (VCE), Left Voices,
2nd Voice.
Programs: 320 Programs, 3 Voices layered, 3 Splits
Functions: Aftertouch, Sustain, Portamento, Velocity Switch,
Duet, Trio, Morphing, Steel, Slide, Harmony
Editing: ADSR, Cut Off, Resonance, Effects, 2nd Voice.
Polyphony: 197 notes.
Voice List: Up to 300 custom sound locations + 20 User
Voice List (UVL) linkable with Style, Midi file,
Mp3 and Wave.
Organ Drawbars: 9 Digital Drawbars, Rotor, Click,
Percussion, Overdrive.
Ram/Ins: 64 MB RAM (Expandable up to 256 MB).
Ins Orchestral Voices, Supersolo.
Assignable
Switch Tabs 1-16: Factory /User programmable Features, 5 Modes.
Sampler: 44,1 KHz, Multi sampler editor (MSP).
Professional
Multiplayer: 2 x Wav, 2 x Mp3, 2 x Midi, Real time stretching
and Audio transposition, DjLoop, Sfx, Demos,
Play list, Autoplay, Key Tunes, HD Recording
2 tracks, Pfl, MP3 Encoder, Audio Ripper,
Macro Recording.
Midifile Player: SMF player Mid / KAR and TXT file, Jukebox,
Song Chain, Audio Drum and Live Guitar, Remix,
Midi Song Record, Wave Sync, Medley, MidiMix.
Registrations: Global panel settings, Single and Block
Mode.
Drum-1: 51 Drum sets, 3 Super Kit, 24 User Drum sets,
10 Percussion sections, Drum mixer, Manual Drums.
Drum-2 (Groove): 62 Live Drums Loops.
Real Audio
Arranger: 570 styles, User Audio Drum, over 370 Real
Audio Drums Sequences, Acoustic and Electric
Live Guitar, User Live Guitar, Arranger ABCD,
3 Intro/ending, 4 Fill ins, 4 Breaks, Bassist and
Pianist, Audio Style Modeling.
Bank Libraries: Drum, Groove, Bass, Piano, Guitar1/2 , Arp&Lick,
Live Guitar.
Pattern Recording
& Editing: Quantize, Loop, Recording, Editing style.
Module Control: Octave /Double, Harmony, Transposer,
Arabic Scale.
Accordion: International and Belgian systems.
Dsp Effects: 3 multi-effect DSPs, Reverb, Chorus, Flanger,
Delay, Phaser, Tremolo, Tap Delay 4/8, Wha-Wha,
Distortion, Overdrive, Slow/Fast Rotor,
Parametric 4-band Equalizer.
Microphone 1&2: 2 Microphone inputs Gain control,10-band
Equalizer, Echo, Reverb, Pan, Pitch Shift, Talk,
Voice Transform.
Voicetron: 5 Voices Harmonizer, Vocoder mode, Auto-
harmony, MIDI Vocalizer track, Advanced editing.
Midi: in 1, in 2, out, thru, 32 MIDI channels, GM2 Standard.

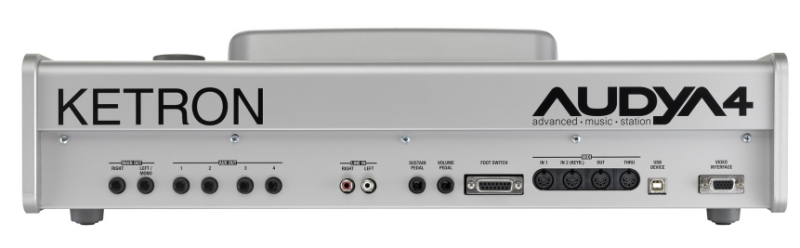

Outputs: Left/Mono, Right, 4 individual assignable outputs
(2 stereo or 4 mono), Stereo headphone.
Inputs: 2 XLR microphone inputs, 2 line in inputs (stereo),
Sustain and Pedal Volume, Footswitch
(6 or 13 switches).
Video Interface: Systems PAL, NTSC, Super VHS, VGA monitor
Resolution: 640 x 480.
Dimensions: 52 cm x 32 cm x 11 cm
Poids : 7 Kg
