Yamaha TF1

Yamaha TF1 - Image n°1
Yamaha TF1 - Image n°2
Yamaha TF1 - Image n°3

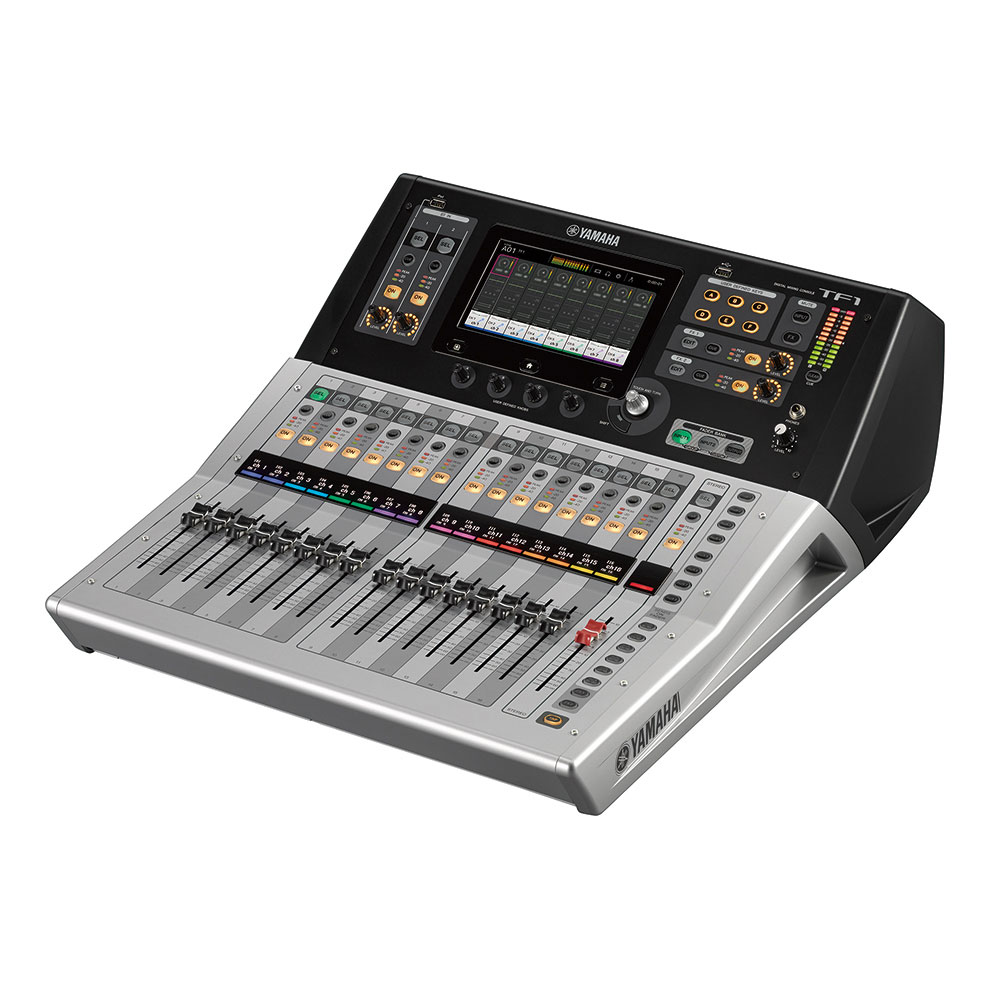

Yamaha TF1 - Image principale

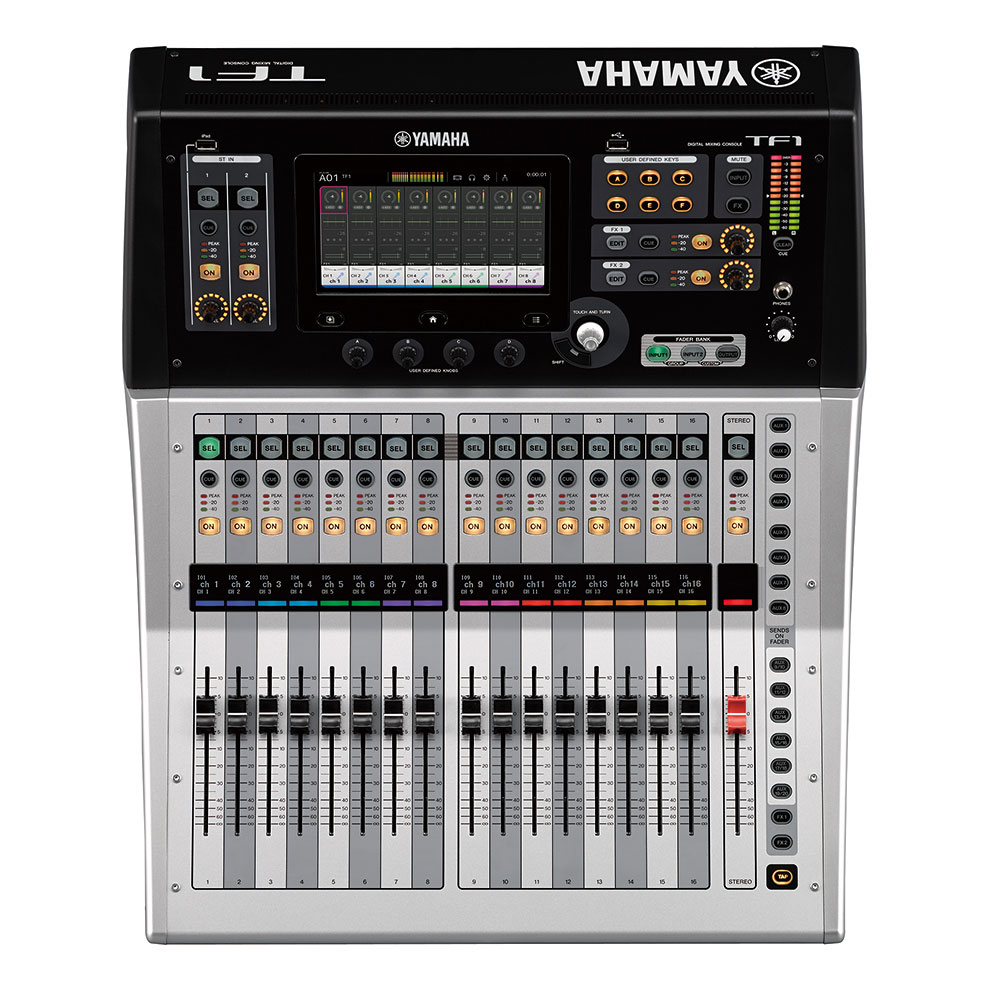

Yamaha TF1 - Image n°2

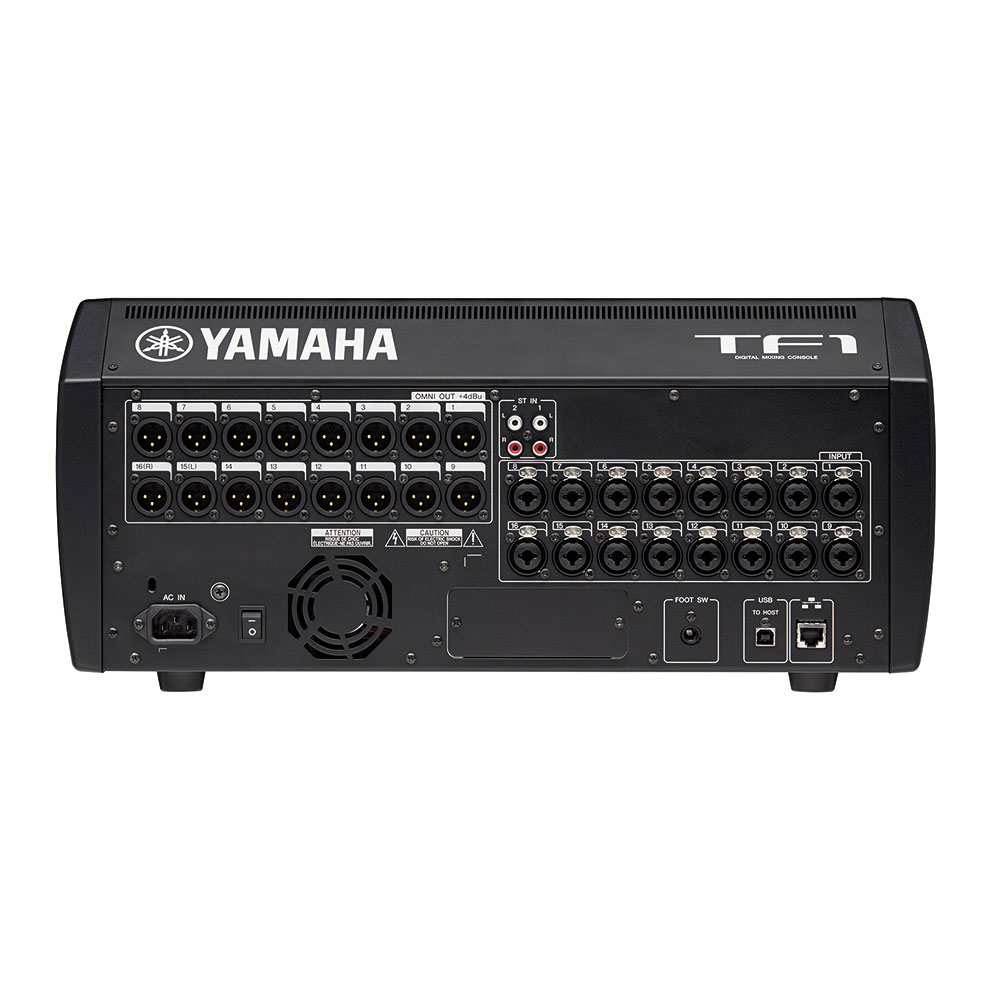

Yamaha TF1 - Image n°3
Yamaha TF1 - Image n°4

Caractéristiques TF1

- 17 faders motorisés (16 tranches + 1master)
- 40 canaux d'entrées mixables (32 mono + 2 stéréo + 2 retours d'effets)
- 20 bus AUX (8 mono + 6 stéréo) + Stéréo + Sub
- 8 groupes de DCA avec fonction Roll-out
- 16 entrées combo XLR/TRS micro/ligne + 2 entrées ligne stéréo en RCA
- 16 sorties analogiques en XLR
- On-board processors DSP : 8 Effects + 10 GEQ
- 34 x 34 numériques record/playback via USB 2.0 + 2 x 2 via appareil de stockage USB
- Dimensions : 510 mm / 225 mm / 599 mm
- Poids : 13.5 kg (29.8lb)
- Accessories Quick Guide, Power Cord, CUBASE AI download information
- 1 slot d'extension pour carte Dante NY64-D
- Options : Rack-mount Kit RK5014, Expansion Card, Foot Switch (FC5)

Sampling frequency rate Internal : 48 kHz
Signal delay : Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Total harmonic distortion :Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
Frequency response +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise level Equivalent input noise –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Residual output noise –85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.

Analog input characteristics
Input Terminals GAIN Load
Impedance For Use With
Nominal Input Level Connector balanced /
Sensitivity*1 Nominal Max. before clip
INPUT1-16 +66dB 7.5KΩ 50-600Ω Mics or 600Ω Lines
-82dBu (61.6V) -62dBu (0.616mV) -42dBu (6.16mV) Combo Jack (XLR-3-31 type *2 or TRS phone *3) Balanced
-6dB -10dBu (245mV) +10dBu (2.45V) +30dBu (24.5V)
ST IN 1,2 — 10kΩ 600Ω Lines -30dBV (31.6V) -10dBV (316mV) +10dBV (3.16V) RCA Pin Jack Unbalanced

*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*In these specifications, 0dBu = 0.775Vrms.
*+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.
Analog output characteristics
Output Terminals Source
Impedance For Use With
Nominal GAIN SW Output Level Connector balanced /
Nominal Max. before clip
OMNI OUT 1-16 75Ω 600Ω Lines
“+24dBu” position (default)

+4dBu (1.23 V) +24dBu (12.3 V) XLR-3-32 type *1 Balanced
PHONES *3 100Ω 40Ω Phones — 3mW 75mW Stereo Phone Jack (TRS) *2 Unbalanced

*1.1: GND,2: HOT, 3: COLD
*2 Tip: LEFT, Ring: RIGHT, Sleeve: GND
*3 The position of the level control is lowered by 16dB from the maximum.
*In these specifications, 0dBu = 0.775Vrms.
*All output DA converters are 24bit, 128times oversampling.
Digital input/output specifications
Terminals Format Data length Audio Connector
USB (TO HOST) USB 24bit 34ch input / 34ch output, PCM USB (B type)
iPad USB — Playback: MP3 or WAV file data / Record: WAV file data
